Burberry

2008 / Tokyo

Designed by Tomane(Tokyo)

クリーンカットレーザー加工機は、窒素ガスで母材を冷やすと同時に、酸素を遮断しながらレーザーカットしますので、カット面を細く焦がさずにカットできるのが特徴です。

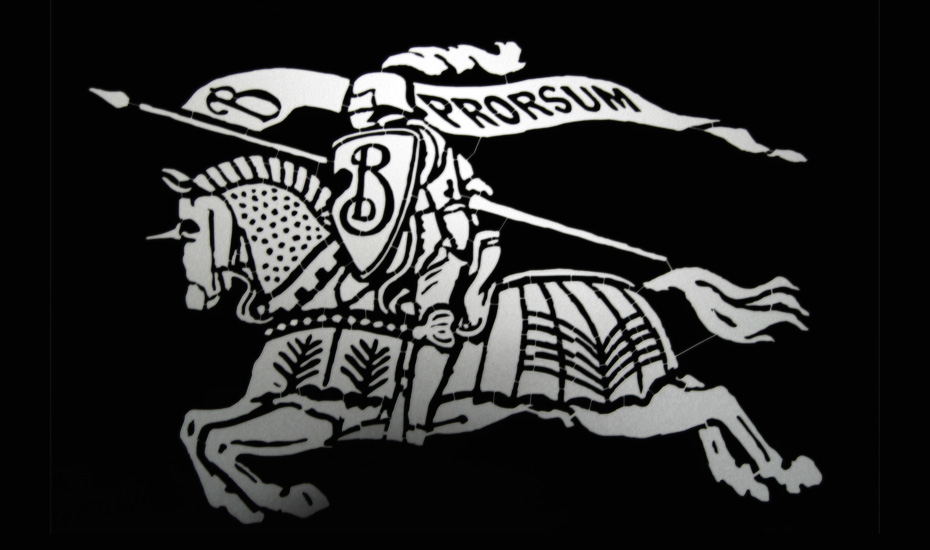

バーバリーのエンブレムはそれまで細かなパーツを組立てて、手作業で制作されていましたが、弊社のレーザーカットサンプル(ミニチュア自転車)をご覧になり、
0.2mmのブリッジでステンレス薄板を精密カットする技術が認められ採用されました。

ミニチュア自転車は弊社がプレゼンを行う際、デザイナーの方々にお見せするとそのサイズと精巧さに一様に非常に驚かれます。ご覧になりたい方はお問い合わせください。

<クリーンカットレーザー加工機(ドイツ・トルンプ製)の特徴>
冷却のため窒素ガスをレーザーの周りに漂わせながらレーザーカットしますので、摩擦熱を抑えカット面を細くクリーンにカットできます。国産品にもこの種類の機械はありますが、トルンプ製の方が精度も加工スピードも圧倒的に優れています。

<加工可能な材料および厚み・最大サイズ>
①スチール  :t10mmまで可。W1200×H2400mm
②ステンレス :t12mmまで可。W1200×H2400mm
③アルミニウム:基本的には不可。材料が52Sであればt8mmまで可。W1200×H2400mm
④アクリル  :t10mmまで可。W1200×H2400mm
⑤真鍮    :不可。
⑥銅     :不可。

Clean cut laser processing machine, and at the same time cool the base material with nitrogen gas, so laser cutting while blocking oxygen, is characterized can be cut without scorching narrowing the cut surface.

Burberry emblem used to assembled fine parts by hand, and after they saw our laser cutting sample, miniature bicycle, ordered us this one-pierce-emblem which is cut of stainless steel sheet by precision-cut technology, sheet has been adopted observed in 0.2mm bridge.

Miniature bicycle when making a presentation by us, are uniformly very surprised at the size and sophistication and to show you the people of the designer. Please contact us If you would like to see is.


The nitrogen gas is drifting around the laser while laser cutting for cooling, this can be cut into thin clean the cut surfaces reduce the frictional heat.


① Steel: Allowed to t10mm, W1200 × H2400mm.
② Stainless steel: Allowed to t12mm, W1200 × H2400mm.
③ Aluminum: Basically impossible but available if the material is 52S, allowed to
t8mm, W1200 × H2400mm.
④ Acrylic: Allowed to t10mm, W1200 × H2400mm.
⑤ Brass: Not available.
⑥ Copper: Not available.
