EMPORIO ARMANI Omotesando

2013 / Omotesando, Tokyo

Designed by Giorgio Armani(Milan), Studio Kappa(Tokyo)

エンポリオアルマーニ(オーク表参道)で別注アルミルーバーが採用されました。

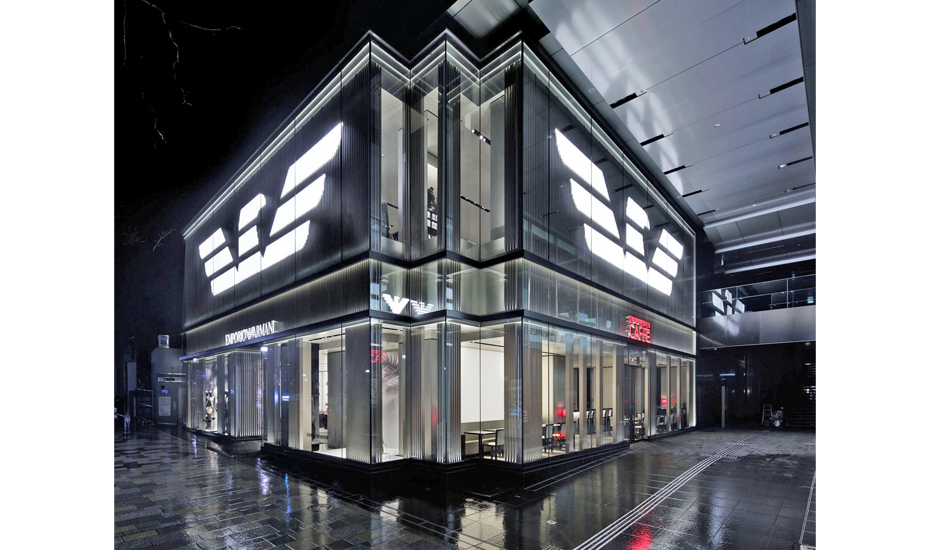

通りに面するファサード(2面)にエンポリオアルマーニのロゴであるイーグルマークのアルミルーバーを製作しました。ロゴの形状に合わせるため、ルーバーの切削箇所はそれぞれ異なります。そのため1本ずつ慎重に切削作業を行いました。

ルーバーは25×105mmのサイズの角パイプで、全体の幅は11.7m、高さは5.4mです。数量は全体で1200本、アルミの総使用量は6tに上りました。ルーバーはコンピュータ制御による切削加工を行い、それに合わせてアクリルカバーの製作も行いました。ルーバーとアクリルカバーの勘合部をピッタリ一致させるまで作業には時間を要しましたがその完成度の高さに関係者に喜んで頂きました。

Bespoke aluminum louver has been adopted by Emporio Armani (Oak Omotesando,Tokyo).

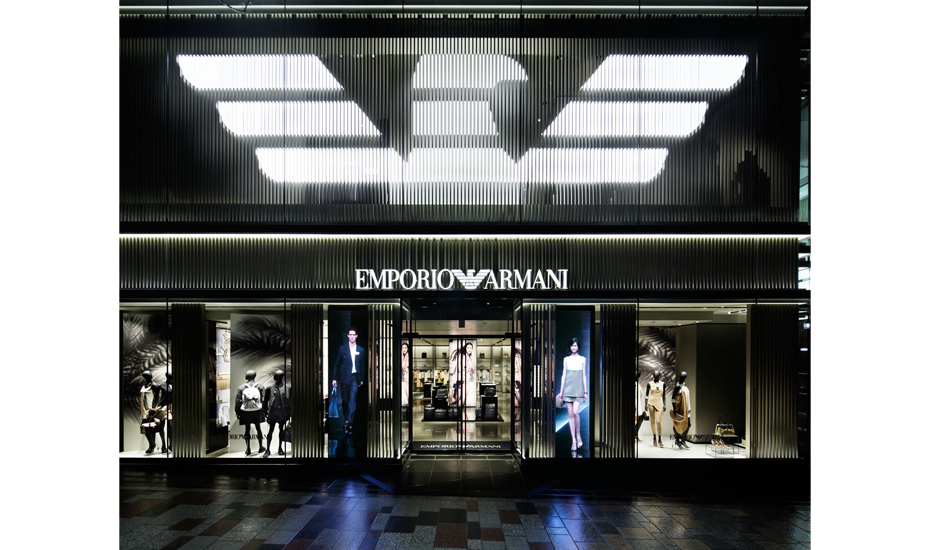

We've made the aluminum louver of Eagle mark of Emporio Armani logo on the facade, two-sided, facing the street. In order to conform to the shape of the logo, the cutting point of louver is different each. So we paid attention to make cutting operation carefully each by each.

Louvers are made by square tube sized 25 × 105mm(0.98" x 4.13"), the overall width of 11.7m, a height of 5.4m. 1200 tubes as a whole is quantity, total amount of aluminum was up to 6t.

Louver performs cutting by computer control, and were also produced acrylic cover accordingly. To work a fitting part of the louver and acrylic cover to be perfect match and took the time, and we performed them perfectly and we had high evaluation from the client for its maturity.

< Custom made / Luxury retail store / High end boutique displays >
