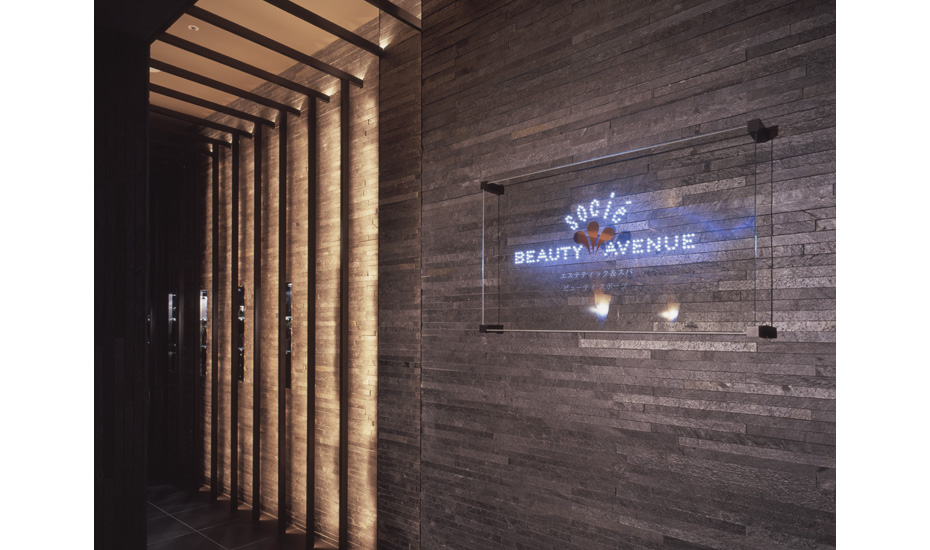

socie BEAUTY AVENUE

2006 / Yokohama, Kanagawa

Designed by Norma Jean Planners(Tokyo)

2枚のガラスにLEDが組み込まれたプロスパーLEDグラスは、アイデア次第で立派なサイネージになります。ガラスの中の配線が見えませんので不思議さもあり、光で人を呼び込む力を持っています。

プロスパーLEDグラスのLEDの配置は自由にデザインすることができます。縦横に規則的に配置した「マトリックスディストリビューション」や、コンピュータにより適度に散りばめる「ランダムディストリビューション」なども可能です。

LED数、配置にもよりますが最少ピッチは約20mmです。LEDの色は、基本色で最も需要が多いのはホワイトですが、ブルー、レッド、グリーン、ホワイトイエロー(電球色)も用意されています。同じガラスの中に単色使いでも、2色以上の混合色使いでもどちらでも対応可能です。

ガラス厚は基本は12.5mmですが、各種サイズを取り揃えています。12.5mmの場合、5mm厚のガラス2枚の間にLEDを配置したフィルムをPVB(プラスチックシート)と一緒に挟んで熱圧着します。PVBは熱を加えると透明になり、またガラスとガラスを強く接着する性質があります。

最大サイズは平面ガラスの場合3600×2300mmです。また曲面ガラスの製造も可能です。詳しくはお問い合わせください。

Prosper LED Glass is a fine signage by the idea. Because it does not see the wiring in the glass, there is a mystery, has the power to attract the people in the light.

The arrangement of the LED in the glass will be able to design freely. Were regularly arranged in rows and columns called"matrix distribution", it's also available such as moderately sprinkle "random distribution" by the computer.

LED number, depending on the arrangement, but the minimum pitch is about 20mm. The color of the LED is white mainly, and blue, red, green and yellow-white (light bulb color) are also available.

Monochromatic color in the same glass is common, but it can accommodate either be two or more colors of mixed colors.

Glass thickness is basically 12.5mm, but offers a variety of sizes. For 12.5 mm, and then thermo-compression bonding by sandwiching a film arranged LED between two glass of 5mm thickness with PVB (plastic sheet). PVB became clear when the application of heat, and also has the property to adhere strongly to glass and glass.

The maximum size is 3600 × 2300mm in case of flat glass. The production of curved glass is also available. Please contact us for more information.
