Roppongi Hills Residence

2003 / Roppongi, Tokyo

Designed by Mori Building Co.,Ltd.(Tokyo) / G2 Design Studio(Tokyo)

プロスパースライディングシステムは六本木ヒルズレジデンスの物件の引き合いをきっかけに2001年から2年がかりで開発されたシステムで、モックアップ完成後正式に採用が決定され、2003年に434枚のドアを設置することができました。

高層ビルは、設計上ワンフロアの高さ制限があり抑えられるのですが、居住空間は逆に天井を少しでも高く見せる必要があります。そのしわ寄せが目に見えない天井裏スペースに来て、天井裏のスライディングドア取付部の高さがわずか50mmしかないという制約がある物件でした。最終的にコンパクトな工業部品である「直動システム」を使用することにより、150kgのガラスドアを吊り下げると共に、スムーズで滑らかな動きを実現することができました。

一般的なスライディングドアのローラー式、ベルト式ではありません。これらのドアは惰性で走り過ぎることがありますが、プロスパースライディングシステムで使われているスライディングドアは、走り過ぎず、適度なスピードを保ちながら開閉できます。

「バリアフリー」で且つ「メンテナンスフリー」(ローラーやベルトを使用しませんので摩擦熱が発生せず、メンテナンスが不要)という難題もクリアした機能性は、森ビル㈱はじめ関係者並びに実際に入居された方々からも高い評価を頂きました。

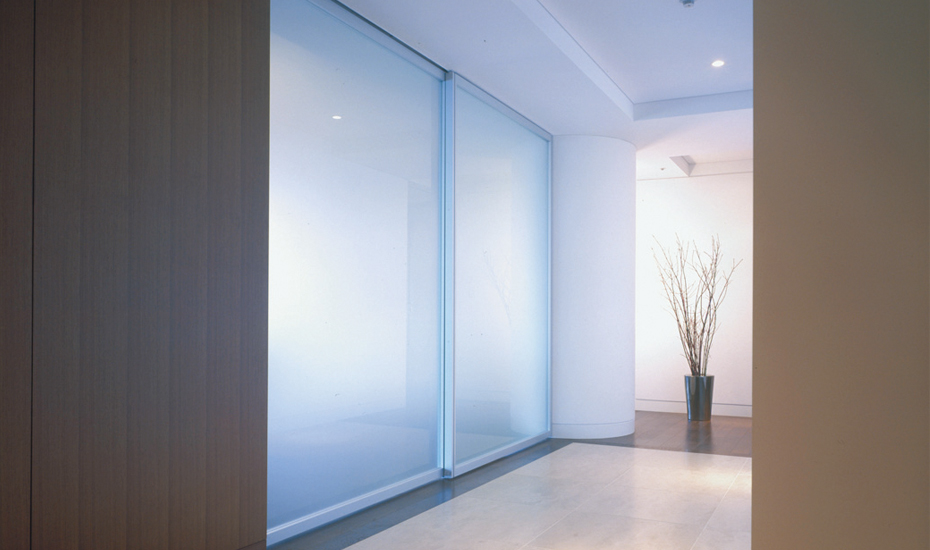

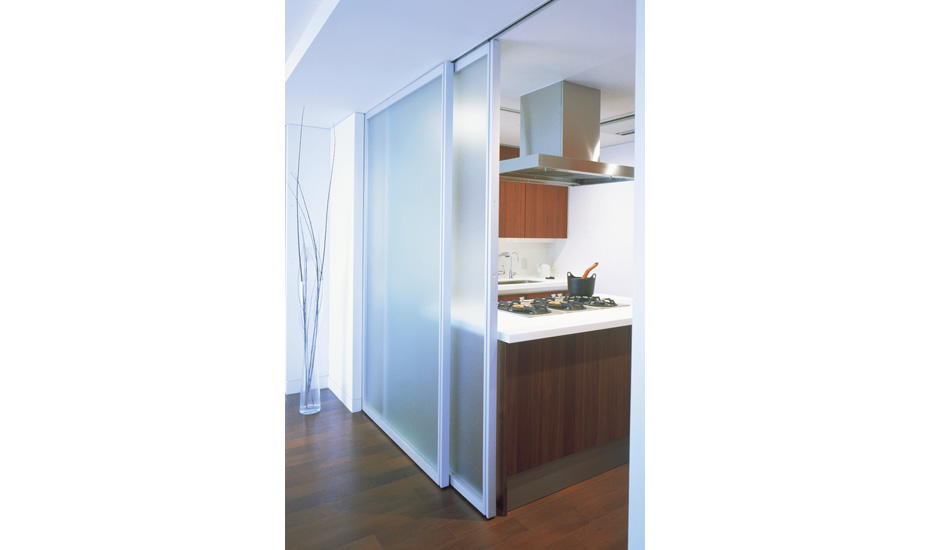

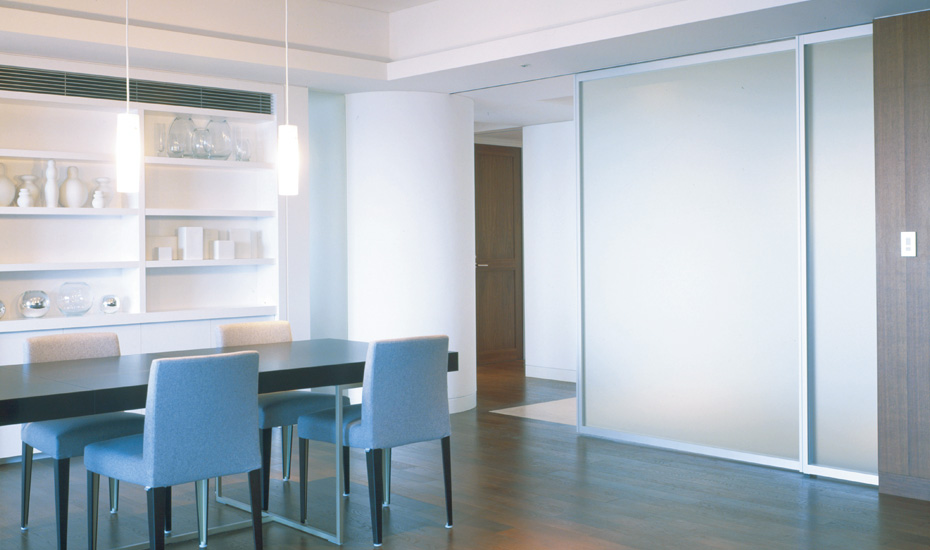

Prosper Sliding System has been developed by spending two years from 2001 in the wake of the inquiries of Roppongi Hills Residence Property in the system, after the mock-up completed formally adopted is determined, we were able to supply 434 sliding doors in 2003.

High-rise buildings, there is a height restriction of design on one floor, living space will need to show a high ceiling even a little to reverse. Come to ceiling space that the toll is not visible to the eye, the height of the ceiling of the sliding door mounting portion is restricted in only 50mm(1.97"). By using of the very compact industrial parts "LM Guide System", as well as hanging the sliding glass door of 150kg, we are able to achieve a smooth motion.

General sliding door' moving mechanism is related to rollers or belt. These doors is smooth to move, but too light, so runs fast without stopping.

Our sliding doors are not too run, you can open and close while maintaining a moderate speed.

"Barrier-free" which means there is "No rail" on the floor and "Maintenance-free" which means "No maintainance" is needed because frictional heat by a roller or belt is not generated as no roller or belt are used. Small ball bealings in Direct action mechanism makes Maintenance-free, and our functionality challenges was accepted by Mori Building Co., Ltd. and related people.
